Mitsubishi Multi-Zone Systems in Glendale, CA

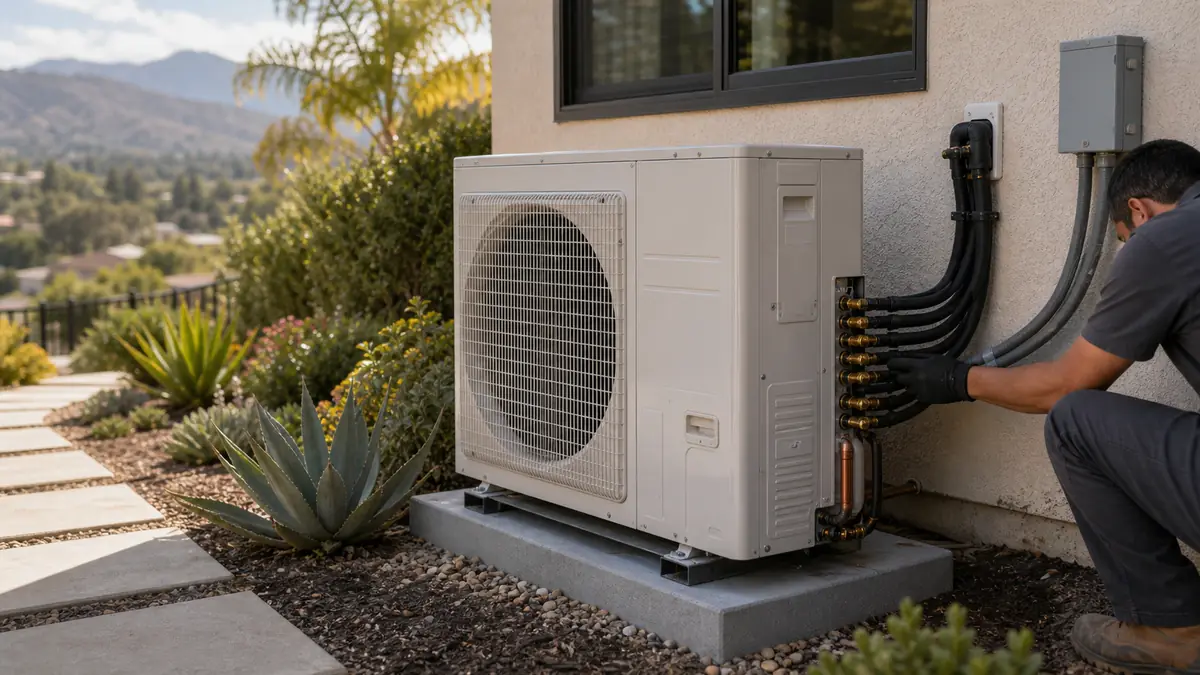

Bottom line first: Glendale Mitsubishi HVAC designs, installs, and services Mitsubishi multi-zone mini-splits across Glendale, including Verdugo Woodlands and Glenoaks Canyon (ZIP 91208), where one MXZ or MXZ-SM SMART MULTI outdoor unit runs several indoor heads for whole-home comfort without ductwork on a tight hillside lot, so call (213) 755-3565 or book online for a load-based design. Three to four zones typically run $9,000 to $20,000.
Good to know
- Outdoor platforms: legacy MXZ-...C (HZ Hyper-Heat) and current MXZ-SM SMART MULTI (36/42/48/60 kBTU).
- One outdoor unit drives roughly two to eight indoor heads.
- SMART MULTI mixes M-Series, P-Series, and CITY MULTI indoor units on one condenser.
- Head choices: MSZ wall, MFZ-KJ floor console, MLZ ceiling cassette, SEZ/SVZ ducted.
- Service area: Glendale plus Verdugo Woodlands, Glenoaks Canyon, Adams Hill, El Miradero (91201-91208).
- Three to four zone install $9,000-$20,000; Hyper-Heat MHZ versions higher.
- Independent; in-warranty units referred to authorized service first.
How do you design a multi-zone system for a Glendale home?
Design starts with a room-by-room load, not a zone count off a floor plan. A Verdugo Woodlands ranch with a hot west-facing living room and cooler north bedrooms needs different head sizes per zone, and the combined load sets the outdoor unit. The table shows how common Glendale homes map to a SMART MULTI configuration and a 2026 install lane.
| Home | Typical Mitsubishi setup | Install cost lane |
|---|---|---|
| 2-bed flatland bungalow | MXZ-SM36 + 2-3 MSZ wall heads | $9,000-$14,000 |
| 3-4 bed Verdugo ranch | MXZ-SM42/48 + 4 mixed heads | $12,000-$18,000 |
| Hillside home, cold mornings | MXZ-SM..MHZ Hyper-Heat + mixed heads | $14,000-$20,000+ |
| Window-blocked or finished rooms | MFZ-KJ floor + MLZ ceiling cassettes | Per-zone; sets high end |
When does multi-zone beat several single-zone units?
Multi-zone wins on tight Glendale lots. A 1920s home crammed against the property line, or a hillside Glenoaks Canyon house with one viable equipment pad, benefits from a single condenser feeding several heads instead of three or four separate outdoor units. The trade-off: if the shared compressor fails, every zone goes down at once, where independent single-zone systems isolate that risk - a real consideration we walk through with you.
Which multi-zone platforms and heads do you install in Glendale?
Multi-zone is built from one outdoor unit and a mix of indoor heads, and the current platform makes the pairing flexible. Here is what we work with.
- MXZ-SM SMART MULTI (current, 36/42/48/60 kBTU). The simplified platform that mixes M-Series, P-Series, and CITY MULTI indoor units on one condenser, available standard and as MXZ-SM..MHZ Hyper-Heat. The default for new Glendale whole-home jobs.
- Legacy MXZ-...C (e.g., MXZ-3C30NAHZ, MXZ-4C36NA). The earlier multi-zone line still common in homes; HZ versions are Hyper-Heat. We service these even where we would spec SMART MULTI for a new install.
- Indoor head mix. MSZ wall heads for most rooms, MFZ-KJ floor consoles where a window blocks a high wall mount, MLZ recessed ceiling cassettes for finished ceilings, and SEZ/SVZ slim-duct units where a short duct run serves two small rooms.
What does multi-zone design and install involve here?
Design is a room-by-room load calculation, not a head count off the floor plan. A west-facing Verdugo Woodlands living room with afternoon sun carries a far higher load than a shaded north bedroom, so each zone gets a head sized to its own load and the combined total sets the outdoor unit. On Glendale's tight pre-1940 lots and hillside Glenoaks Canyon parcels, the single shared condenser is the real advantage - one equipment pad instead of three or four. The install routes a line set to each head, which on a hillside home means longer runs and more labor, and we confirm the electrical panel can carry the load and flag where a Title-24 alteration triggers HERS verification of charge and airflow.
What multi-zone faults do you see most in Glendale?
Multi-zone systems add wiring and branch-box complexity, so the fault pattern differs from a single head. We isolate the affected zone before condemning the shared outdoor unit.
| Symptom | Likely cause / component | Fault code / lane |
|---|---|---|
| One or all zones drop out intermittently | Loose/corroded S1/S2/S3 inter-unit wiring or PCB | E6-E9, EA, EB; $150-$2,000 |
| One head weak or icing, others fine | Per-head LEV/EEV sticking or branch-box issue | P8 / U7; $225-$1,500 |
| Water from one indoor head | That zone's drain clog, pump, or float | P4 / P5; $150-$450 |
| Every zone down, outdoor unit faulting | Shared compressor, inverter PCB, or DC fan | U2/U6/U8; $400-$3,500 |
| One room comfort drifts | That head's thermistor or i-see sensor | P1 / P9; $200-$600 |
Is multi-zone the right choice for your Glendale home?
Choose multi-zone when your home lacks ducts, you want to condition several rooms, and outdoor space or appearance argues for one condenser instead of several - the common case on a tight flatland lot or a hillside parcel with a single viable pad. Choose several single-zone units instead when rooms run at very different loads and schedules, or when you want one failure to knock out only one room rather than the whole house. We run the load calculation and walk you through both before pricing, rather than defaulting every whole-home job to one platform.
Common questions
How many rooms can one Mitsubishi multi-zone unit handle in Glendale?
An MXZ or MXZ-SM SMART MULTI outdoor unit drives roughly two to eight indoor heads depending on the model and total capacity. A typical Verdugo Woodlands ranch lands at three to five zones - living room, primary bedroom, and a couple of secondary rooms - on a single 36,000 to 48,000 BTU condenser sized to the combined load.
Is one multi-zone unit better than several single-zone systems in Glendale?
It depends on the home. Multi-zone saves outdoor space and one condenser pad, which suits a tight hillside lot. But for homes where rooms run at very different loads, separate single-zone units can hold tighter comfort and one failure does not take down the whole house. We will tell you honestly which suits your floor plan.
What does a multi-zone Mitsubishi system cost installed in Glendale?
A three to four zone install generally runs $9,000-$20,000, driven by zone count, head types, and line-set runs up a Glenoaks Canyon or El Miradero hillside. Hyper-Heat MXZ-SM..MHZ versions and ducted-head combinations push the high end. We price after a load calculation, not a per-zone guess.
Can you mix different Mitsubishi head types on one multi-zone outdoor unit?
Yes - that is the strength of the current MXZ-SM SMART MULTI platform, which pairs M-Series, P-Series, and CITY MULTI indoor units on one outdoor. A wall head in the bedroom, a floor console (MFZ-KJ) where a window blocks the wall, and a recessed MLZ cassette in a finished ceiling can share the same condenser.
What happens if one zone fails on a Glendale multi-zone system?
It depends on the fault. A single head's drain clog (P4/P5) or thermistor fault takes down only that zone, and we isolate and repair it. But a comm fault on the shared S1/S2/S3 wiring (E6-E9, EA, EB) or an outdoor compressor or inverter-board failure can stop every zone at once. That single point of failure is the main trade-off against separate single-zone units.
Can I add a zone to my existing Mitsubishi multi-zone later?
Often, if the outdoor unit was sized with headroom. An MXZ or MXZ-SM condenser supports a set number of ports and a total capacity; if your current heads leave a port and capacity free, we can add a head later. If the outdoor unit is already at its limit, adding a zone means a larger condenser, so we plan for likely future rooms when we first size the system.
How long does a multi-zone install take in a Glendale home?
A typical three-to-four-zone install runs a few working days depending on line-set routing and access. A flat Rossmoyne bungalow is faster; a hillside Glenoaks Canyon or El Miradero home with long runs and a tight equipment pad takes longer. We confirm the schedule and any electrical-panel or Title-24 HERS-verification steps after the load calculation and site visit.
